7. Virtual DJ Layout
The Layout menu provides the ability to change the overall look and feel of the Graphical User Interface (GUI). Depending on the Skin Layout that is chosen, other options become available to further customize the details of different areas such as the waveform and jog wheels. The Starter Layout has no customization ability, while Essentials and Pro Layouts have different Layout Options.

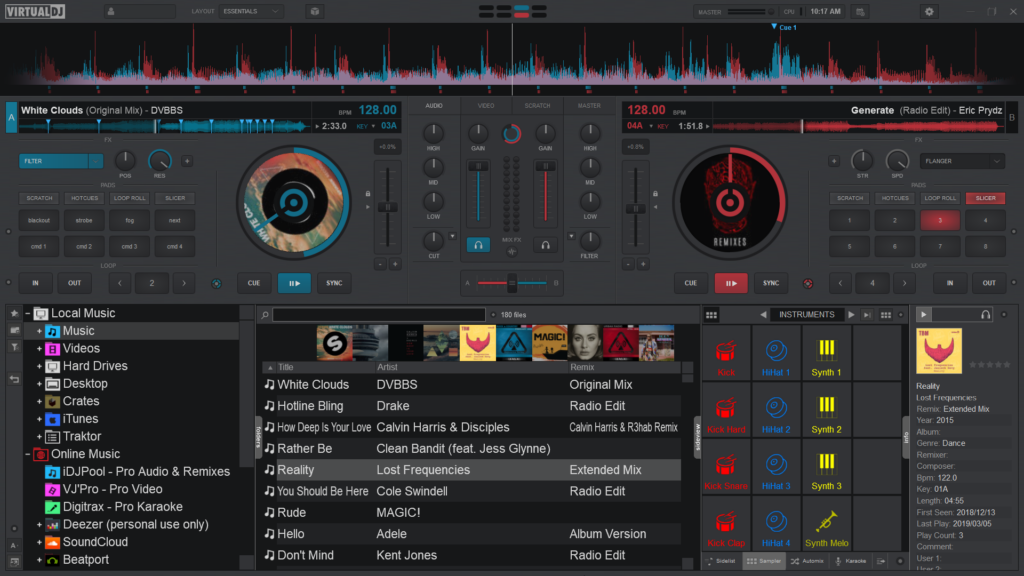

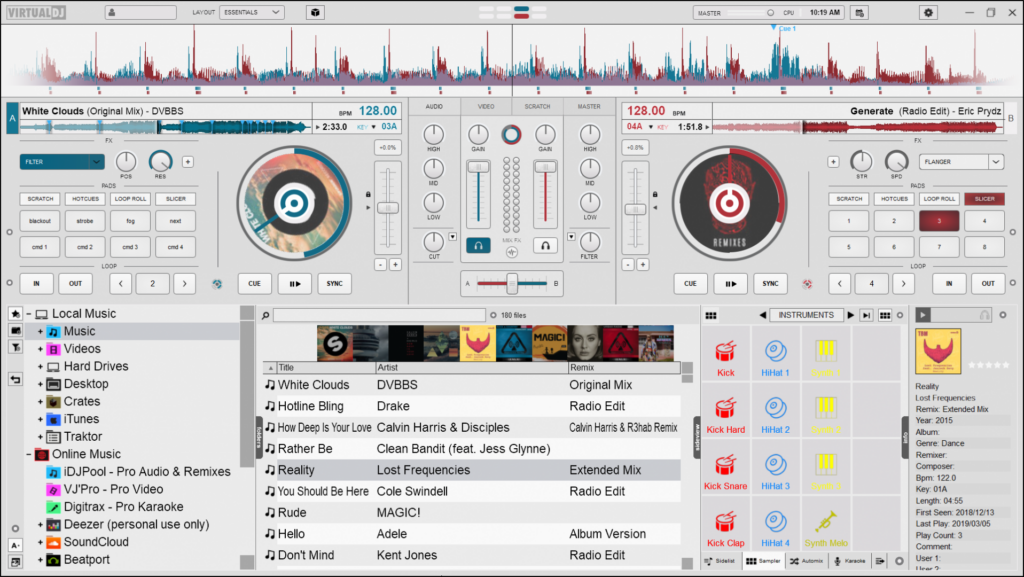

ESSENTIALS

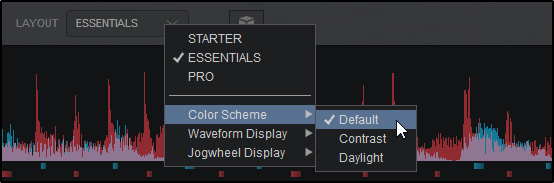

Color Scheme – Changes the overall color of the layout (or skin). 3 options are available; Default, Contrast, or Daylight.
Default

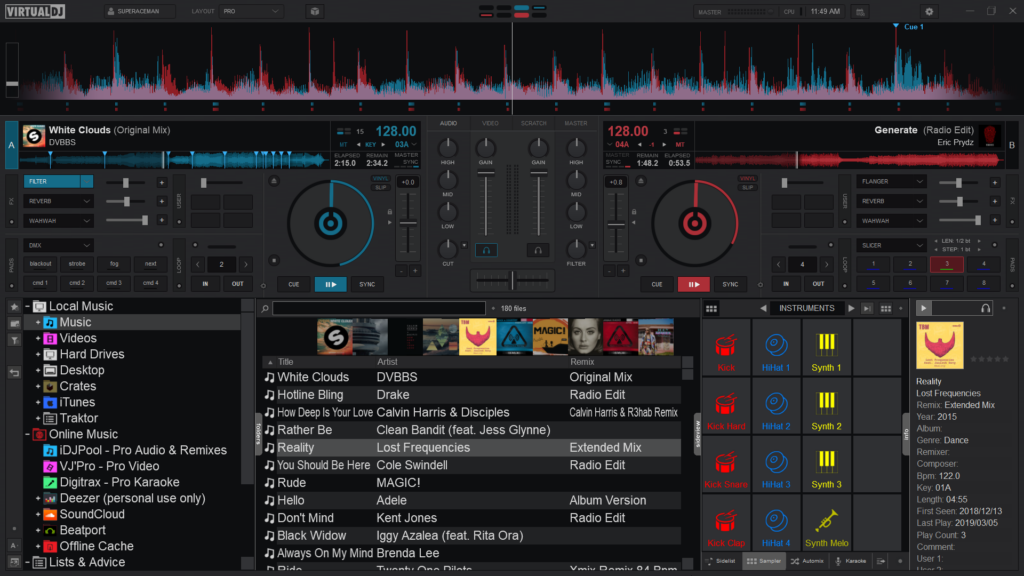

Contrast
Daylight
Waveform Display
Changes the appearance of the Rhythm Wave.
3 display options are available; Beats, Colors, or Shapes. An additional option to Show Gridlines on any of those options is also available at the bottom of the menu.
Beats

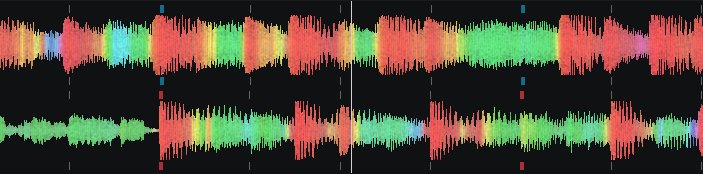

Colors

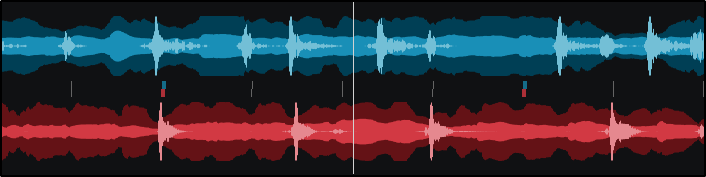

Shapes
Show Gridlines
Jogwheel Display
Changes the look of the jogwheel.
2 options are available; Turntable Look(default) and Spinner Look. Additional options for cover art display are also given for each look; None, Small, or Large(default).

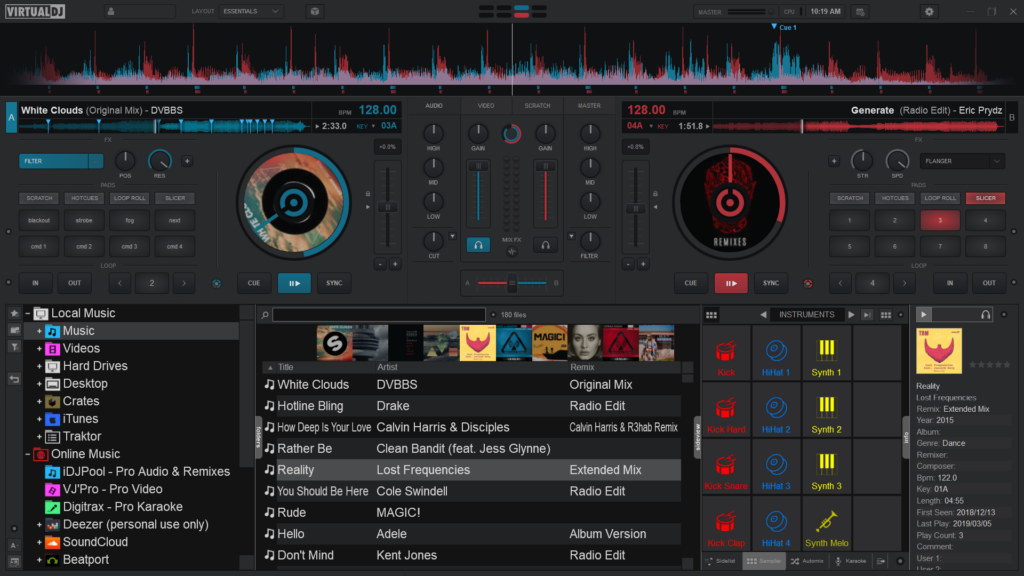

Turntable Look w/Large Cover Art
PRO

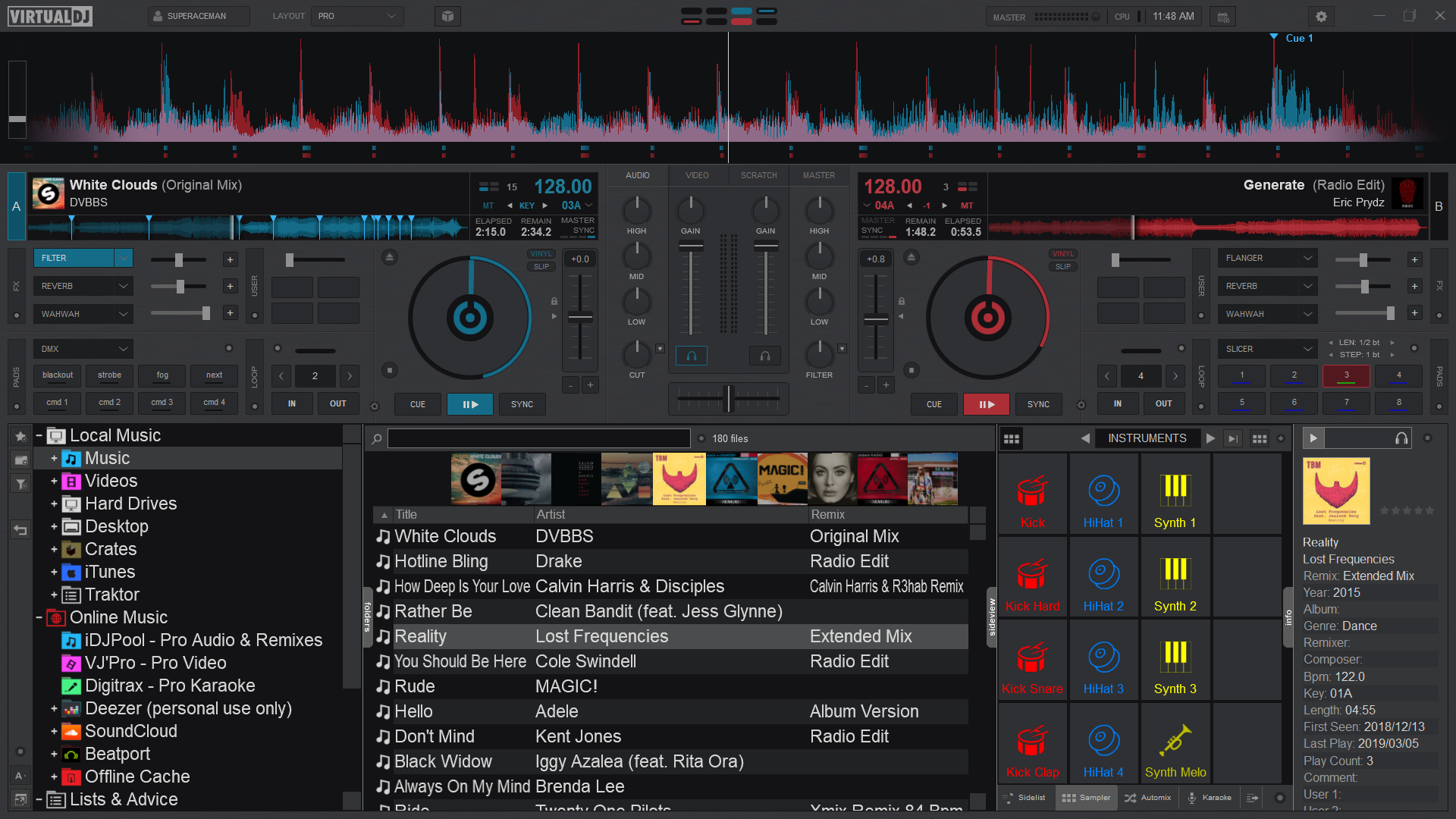

Color Scheme
Changes the overall color of the layout (or skin).

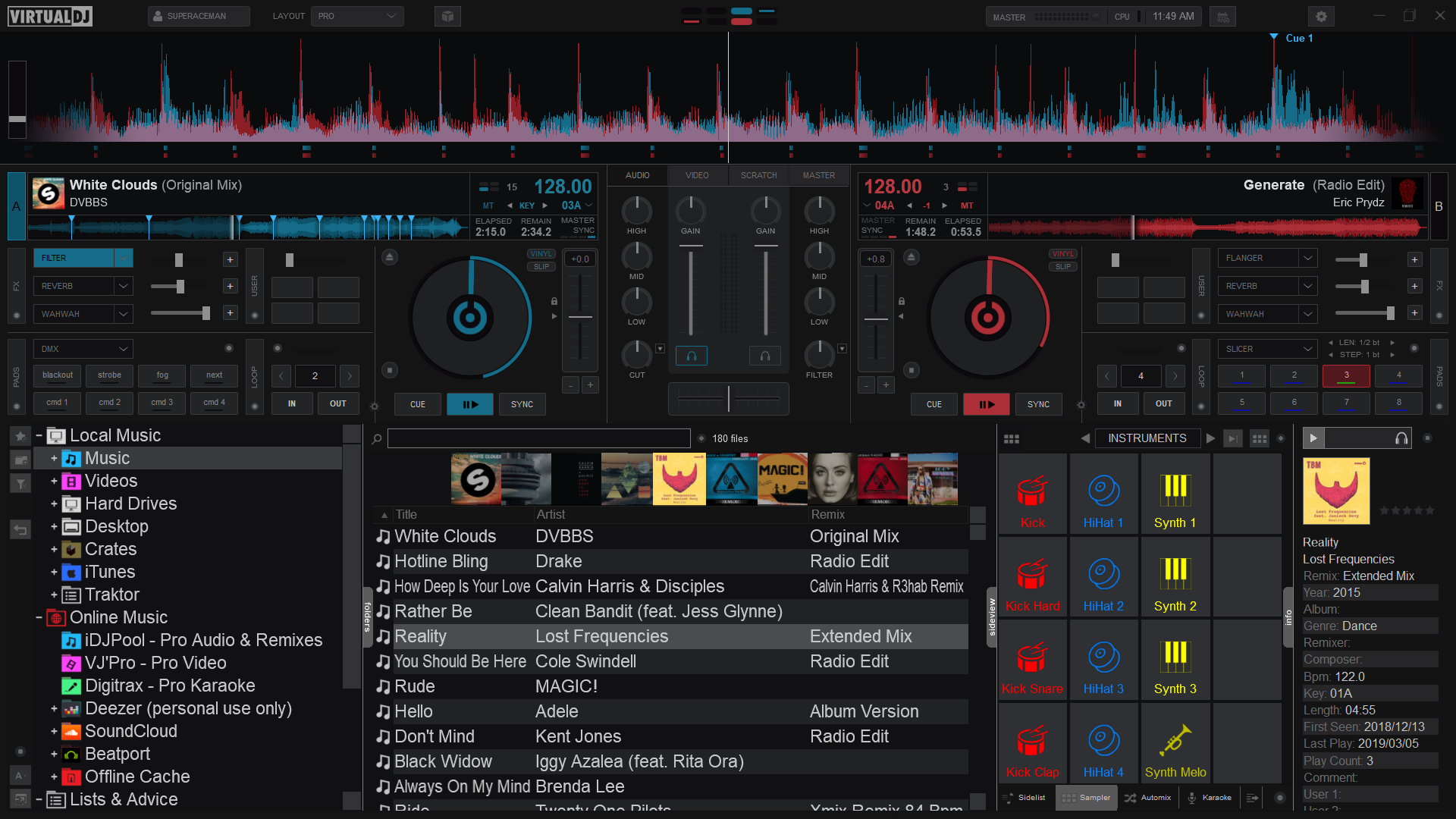

4 options are available; Default, Contrast, Dark Mode, or Daylight.
Waveform Display
Changes the appearance of the Rhythm Wave.
3 appearance options, 3 color options, 2 position options, as well as the ability to show grid lines on the wave and display a bar counter on the waveform:
Appearance Options
| Rhythm Enhanced | Rhythm Mirrored | Full Spectrum |
Color Options
| Monochrome (default) | Full Spectrum | Multi Color |
Position Options
Grid lines and bar counter

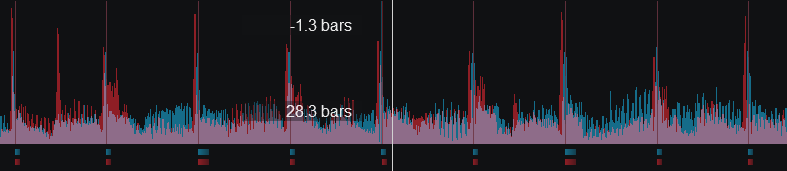

Rhythm Enhanced Waveform w/Grid Lines and Bar Counter
Jogwheel Display
Changes the look of the jogwheel.
3 options are available; Needle, Text, or Needle + Text. The Needle look (default) displays just a spinner while the Text look will display deck information such as BPM, Pitch values as well as elapsed and remaining time. Choosing Needle + Text will combine the 2 looks together.
| Needle | Text | Needle + Text |
Beat Counter

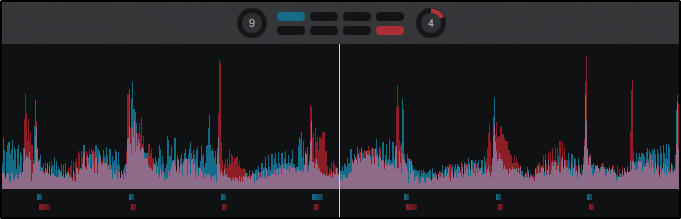

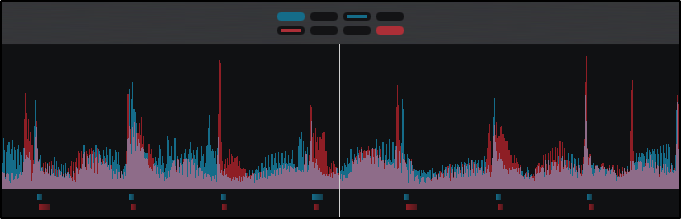

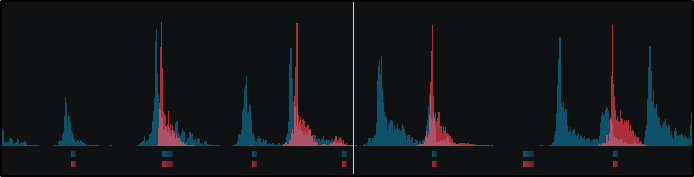

Changes the way Phrases are displayed. If Phrase Bars is selected, the phrase will be displayed inside the Beat Keeper with smaller dashes inside the main display. If Phrase Circles is selected, the phrase will be displayed on the outside of the Beat Keeper in a circular display. Selecting Show on Waveform will display the phrase position in text on the waveform.
4-Decks
Displays 4-Deck Mode.

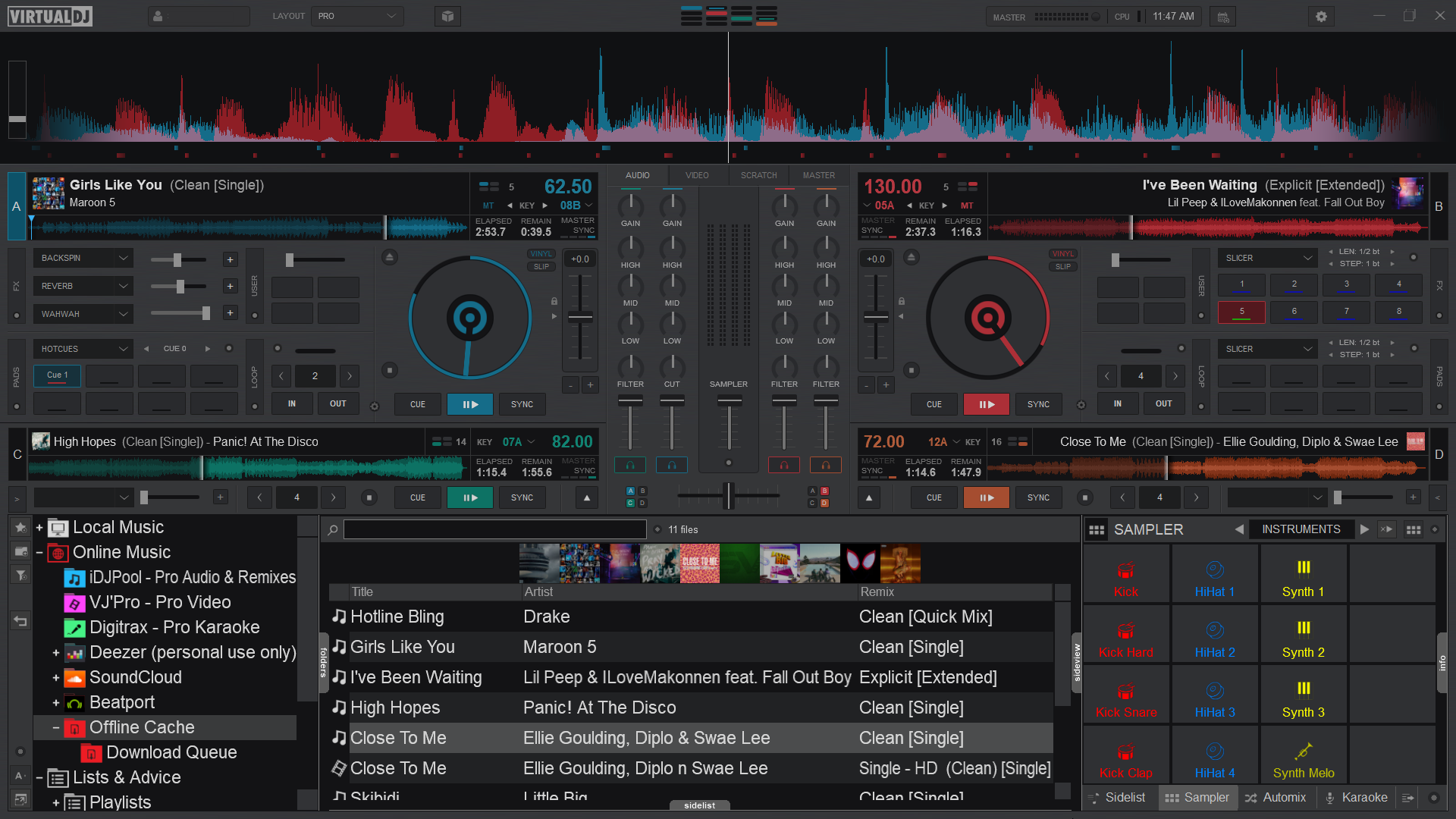

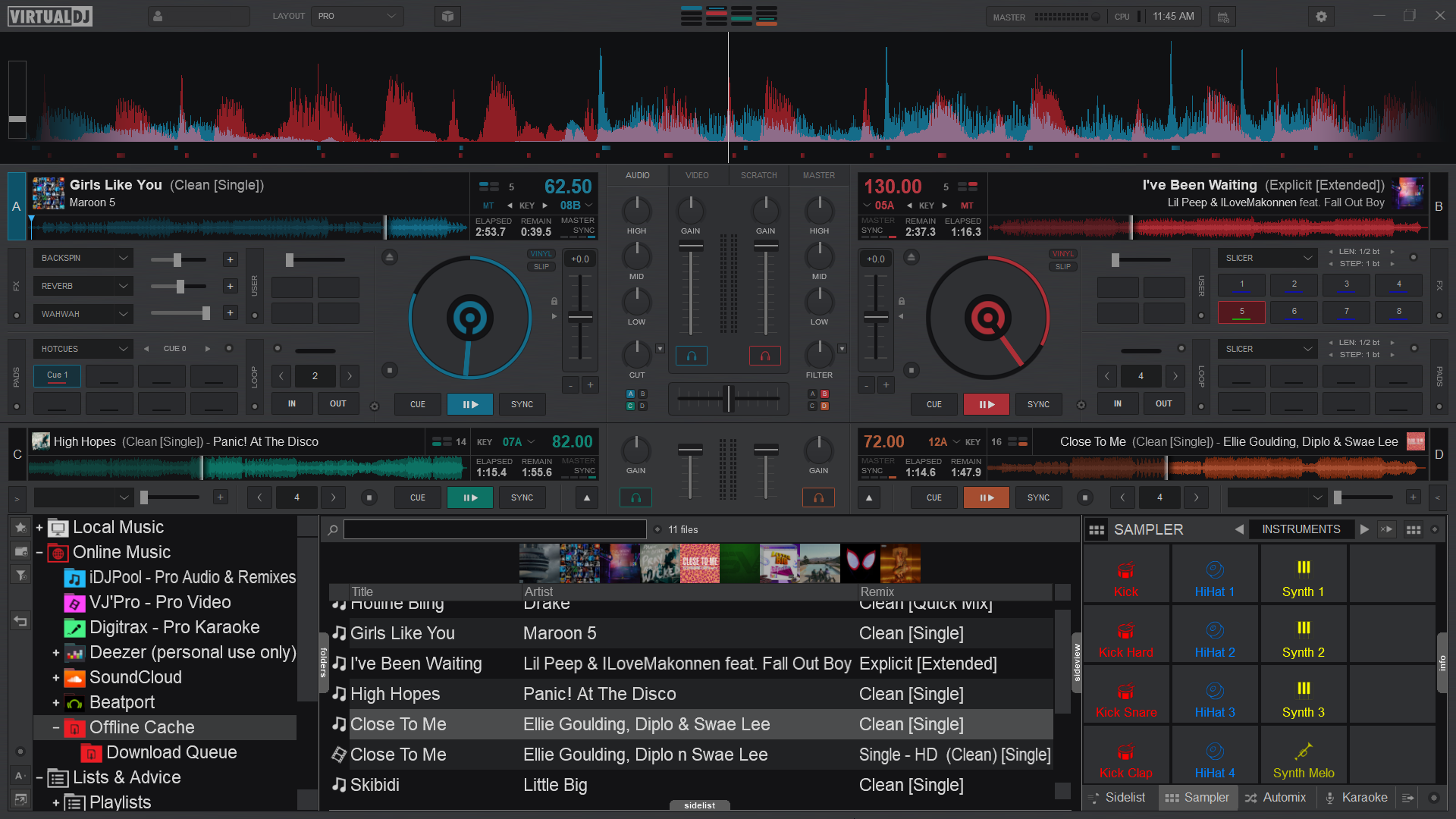

Once selected additional display options are available. The default display is 4-Deck with a 2+2 Channel Mixer but can be changed to a full 4-Channel Mixer.
Performance
Color Scheme
Changes the overall color of the layout (or skin). 4 options are available; Default, Contrast, Dark Mode, or Daylight.

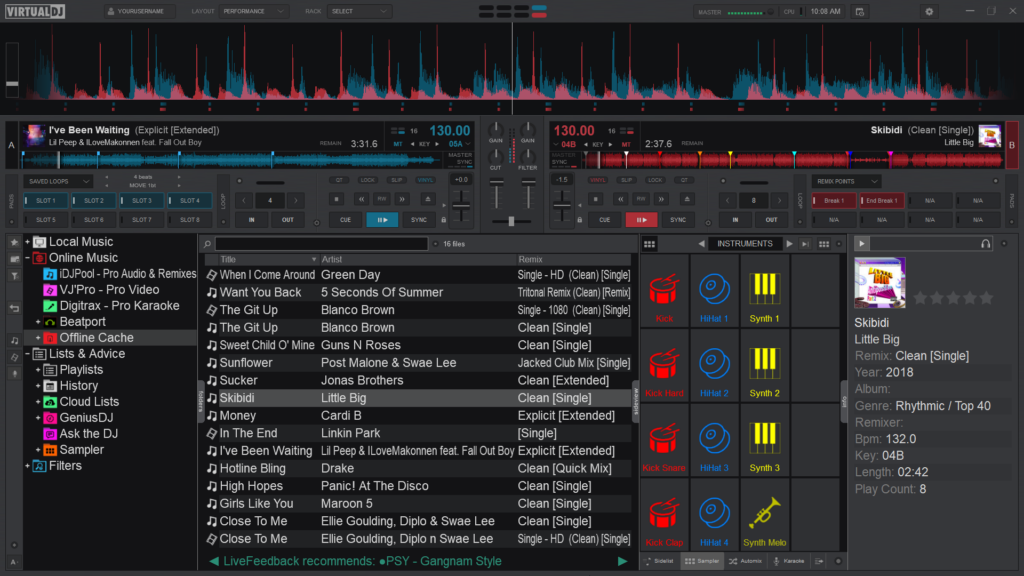

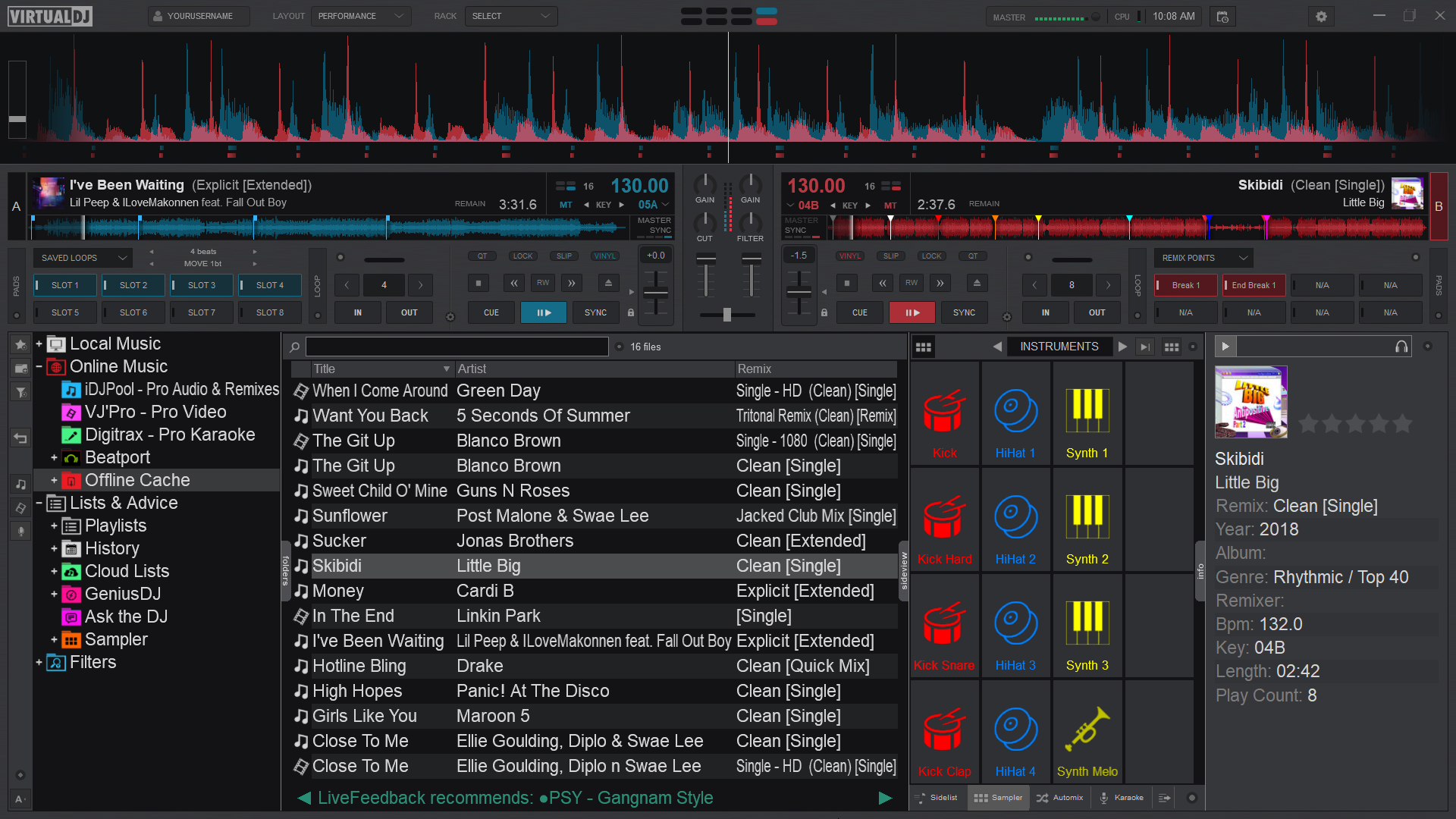

Default

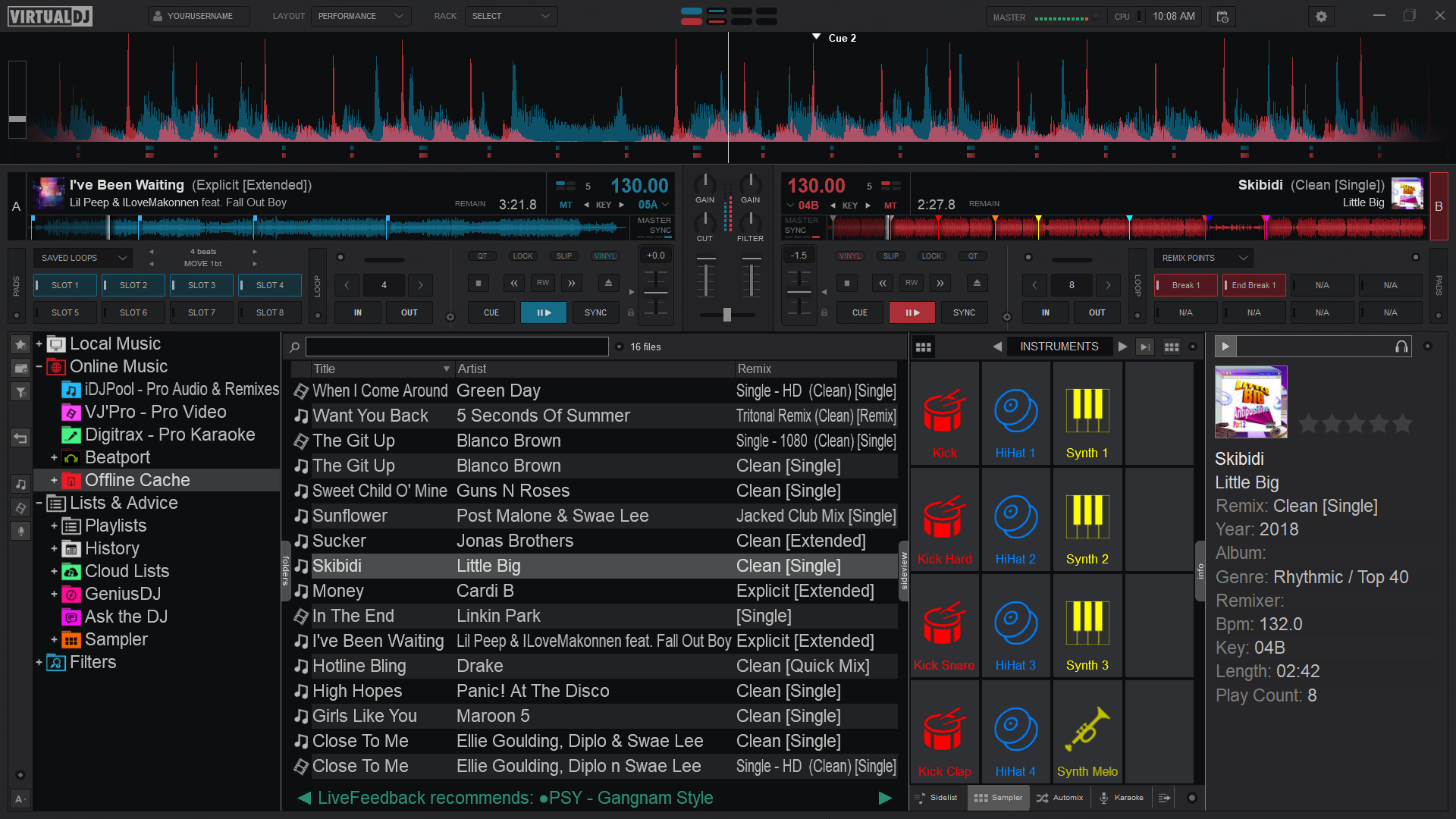

Contrast

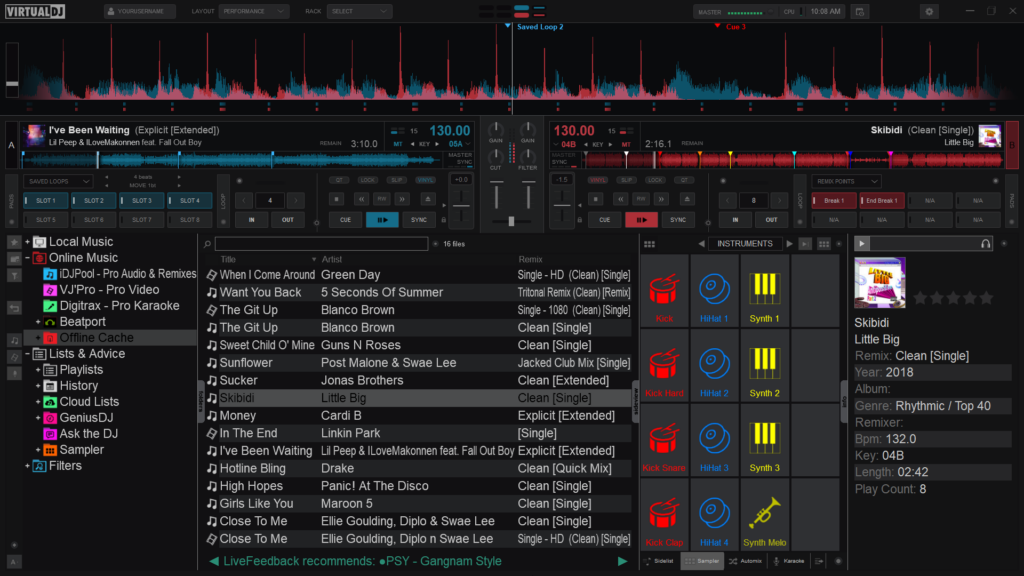

Dark Mode

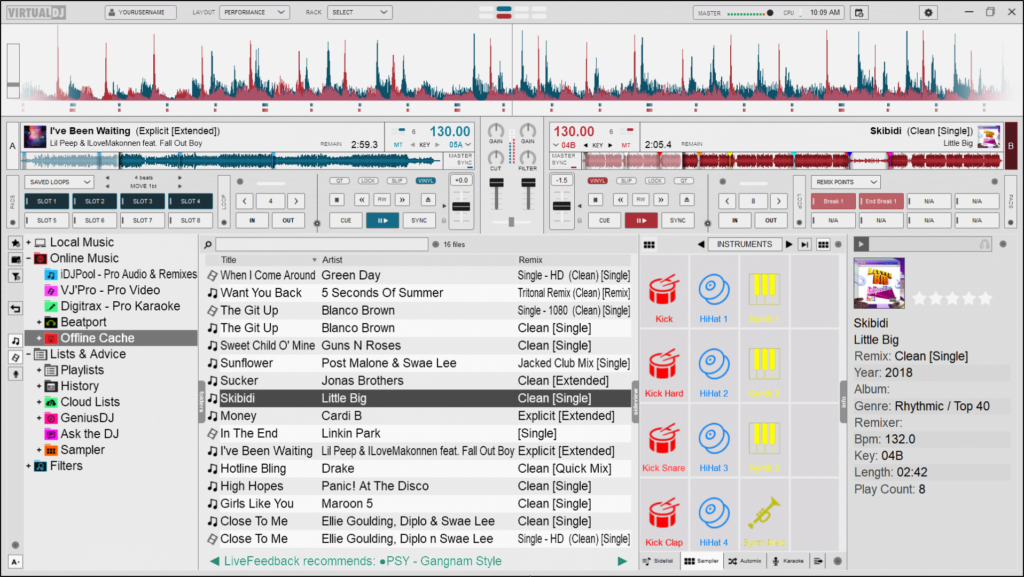

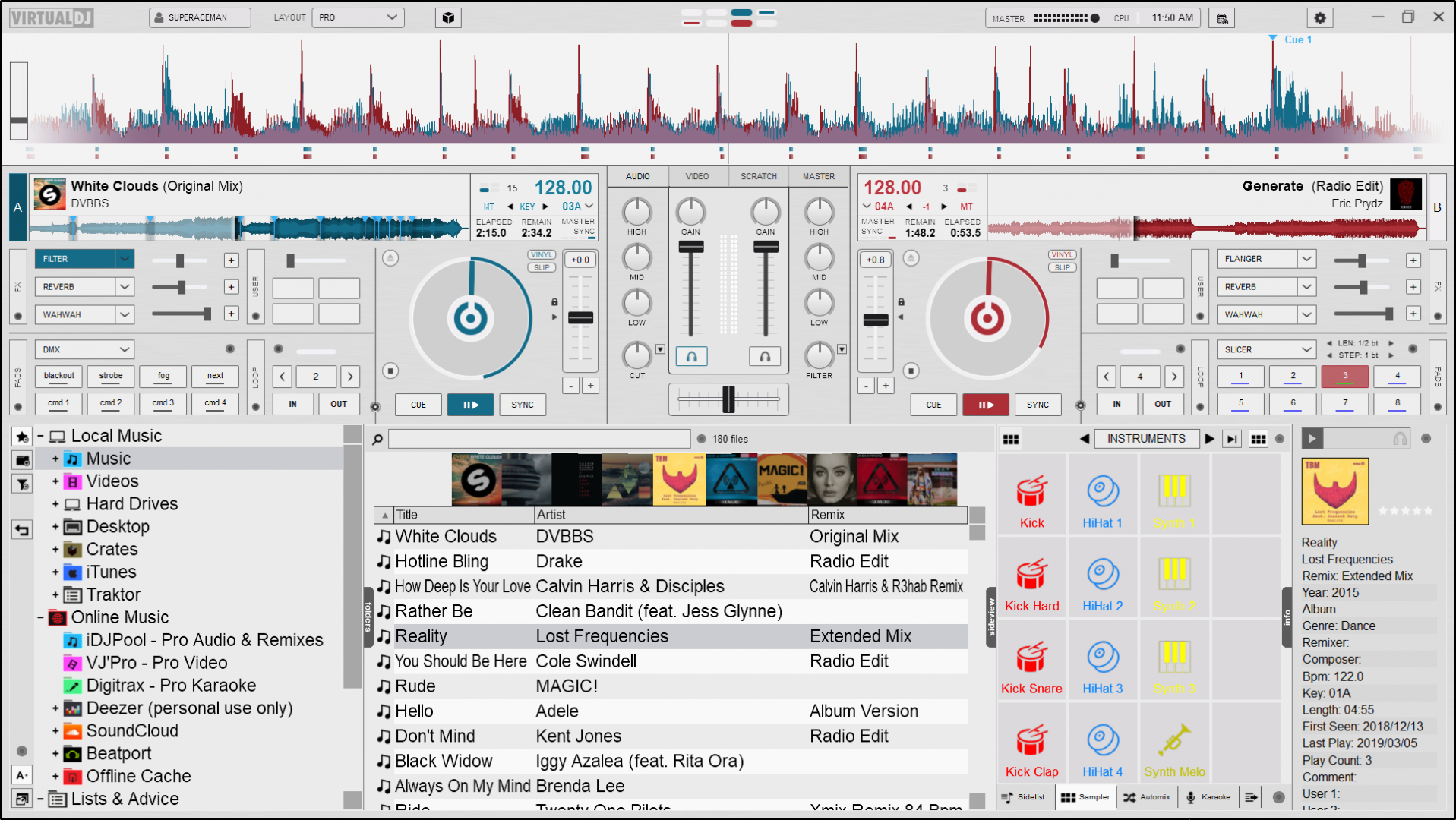

Daylight
Waveform Display
Changes the appearance of the Rhythm Wave.
3 appearance options, 3 color options, 3 position options, as well as the ability to show grid lines on the wave and display a bar counter on the waveform:
Appearance Options

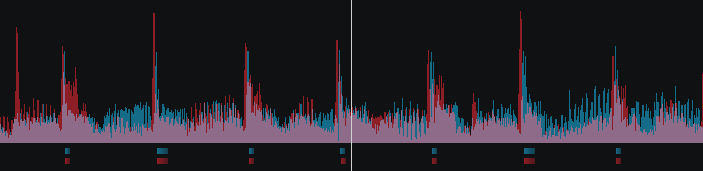

Rhythm Enhanced

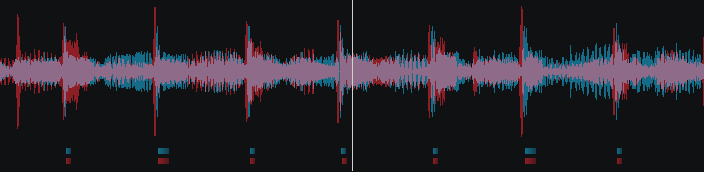

Rhythm Mirrored
Full Spectrum
Color Options

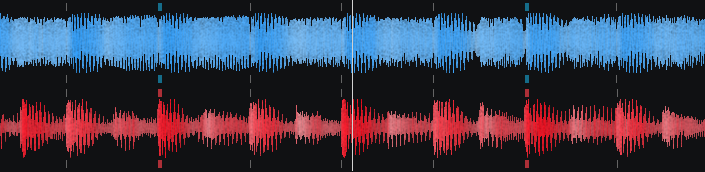

Monochrome

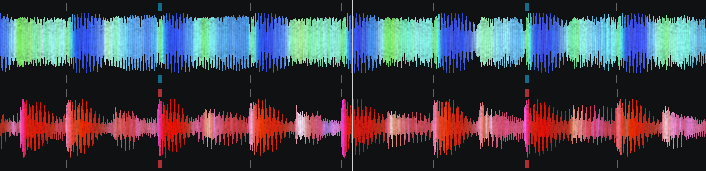

Full Spectrum

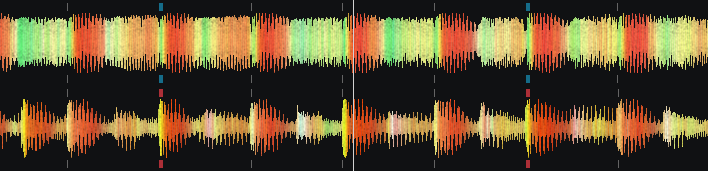

Multi Color
Position Options

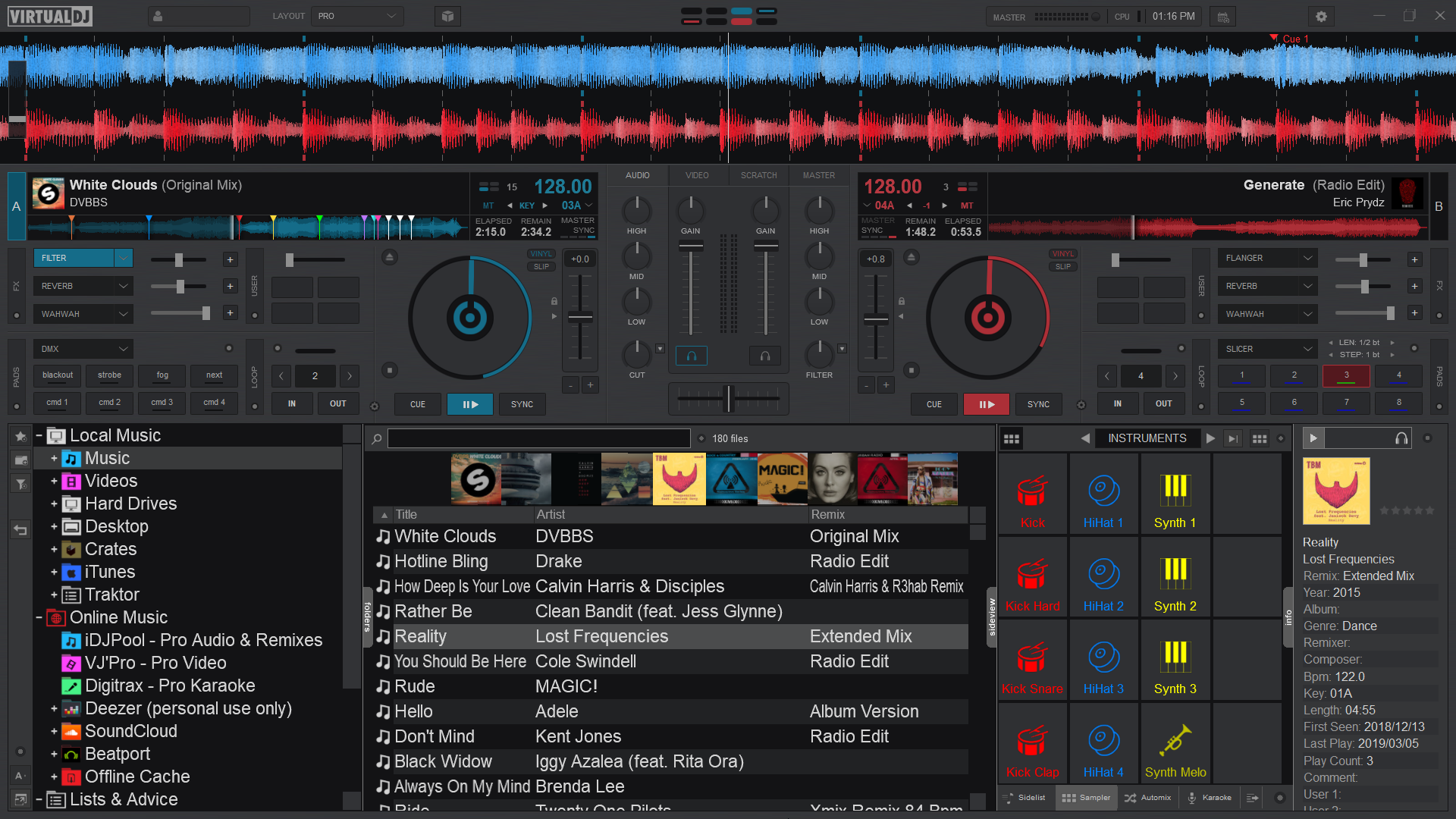

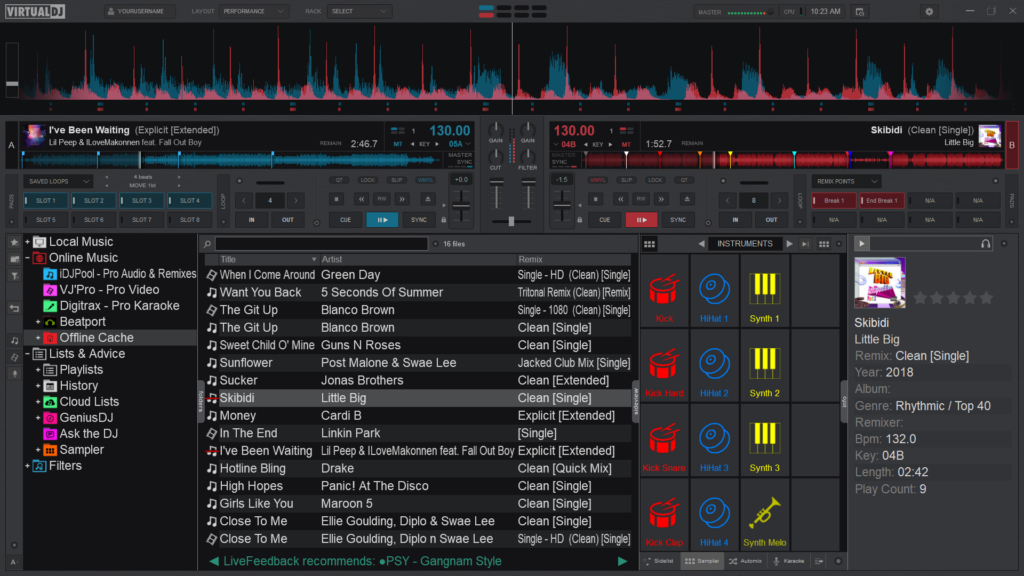

Above

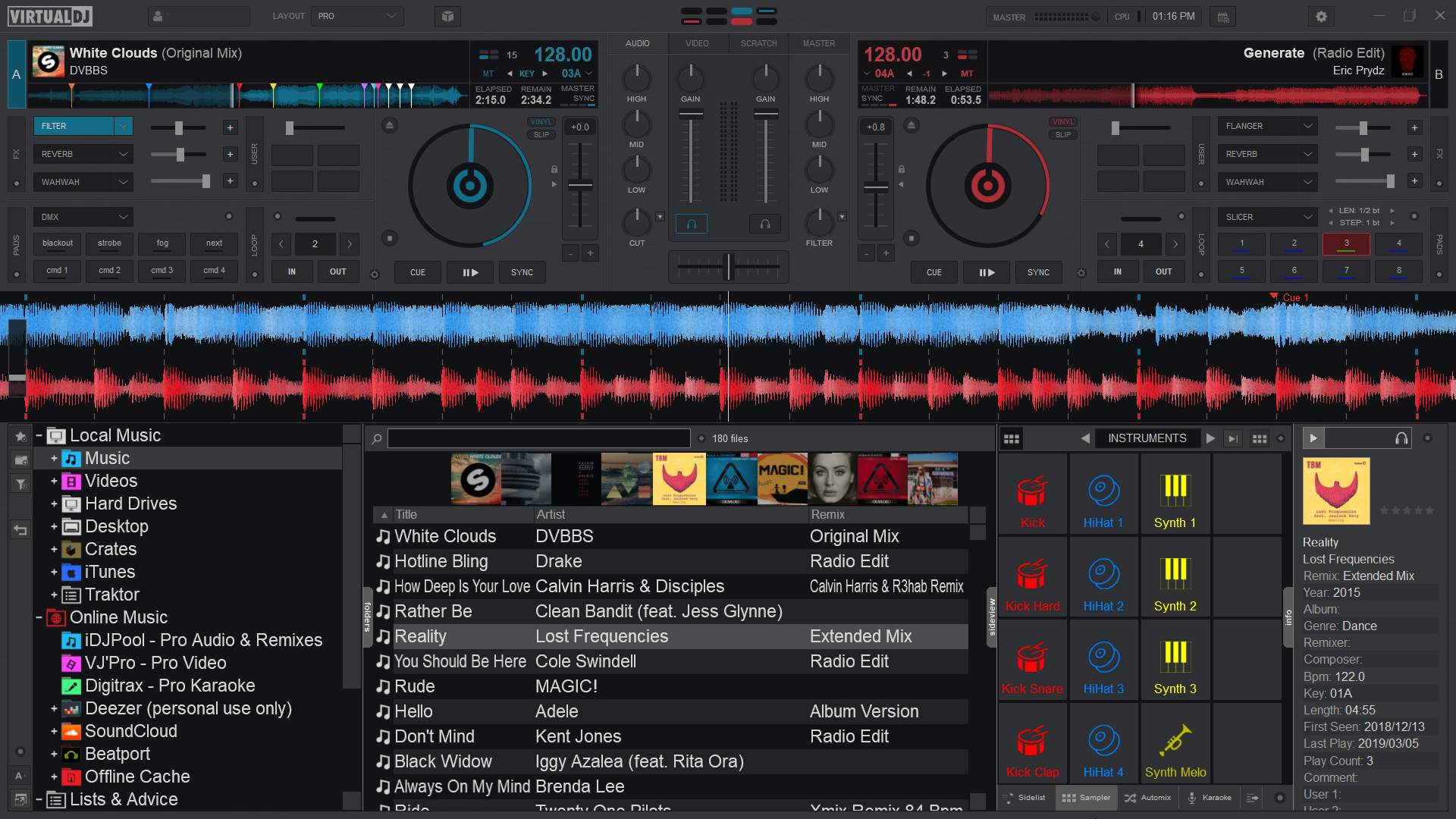

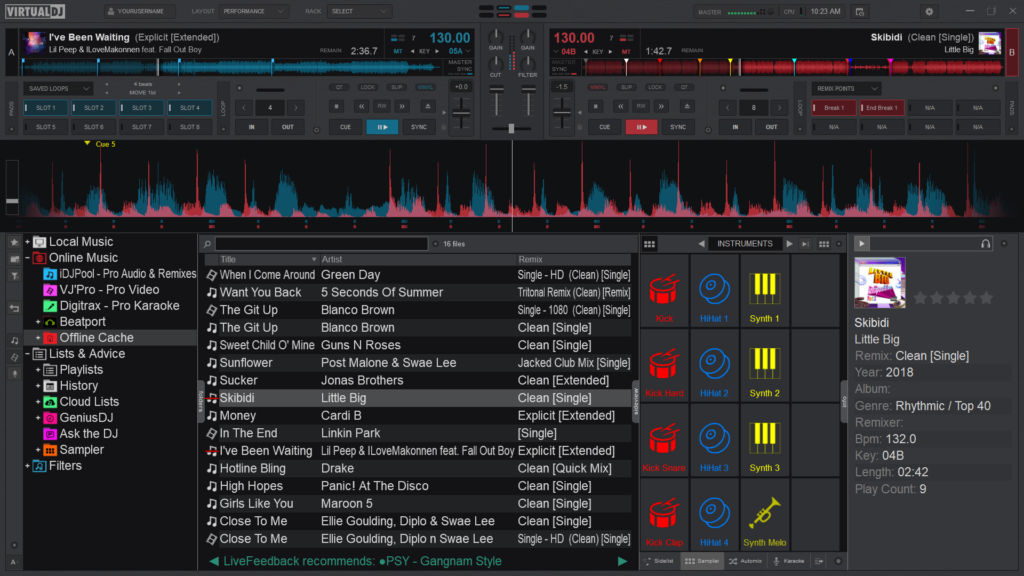

Below

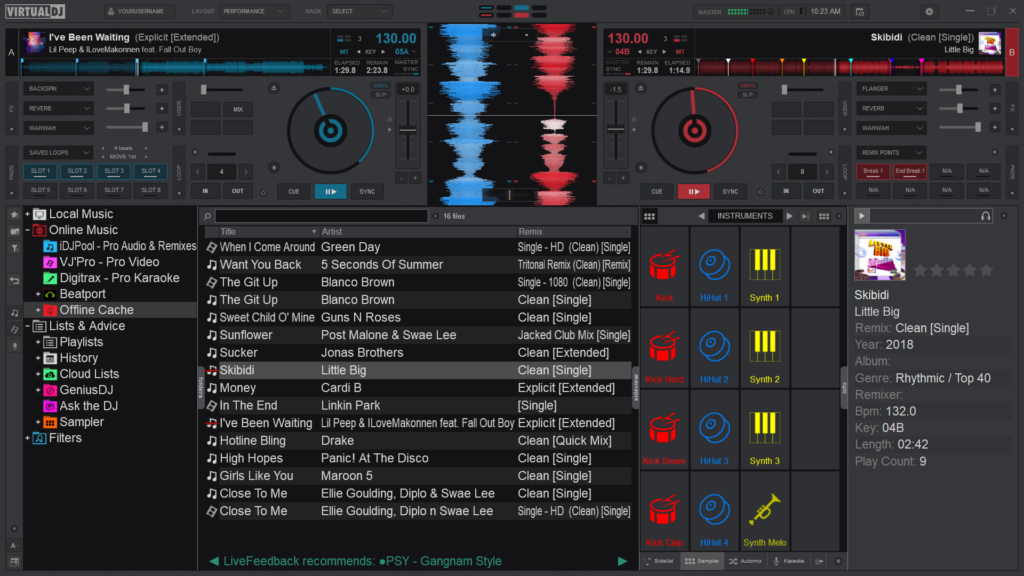

Vertical
Grid lines and bar counter
Rhythm Enhanced Waveform w/Grid Lines and Bar Counter
Deck Layout
Changes the size and position of the decks.
3 Options are available; Full, Compact (default) and Small. When the Full option is selected, other characteristics of the layout can be changed such as the jogwheels (See Pro Layout).

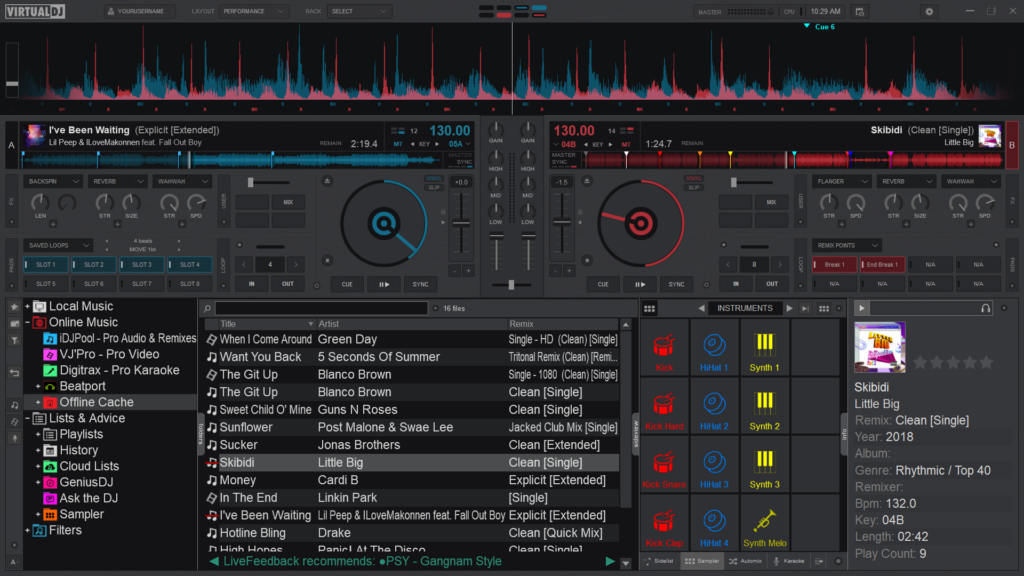

Full
Compact (default)

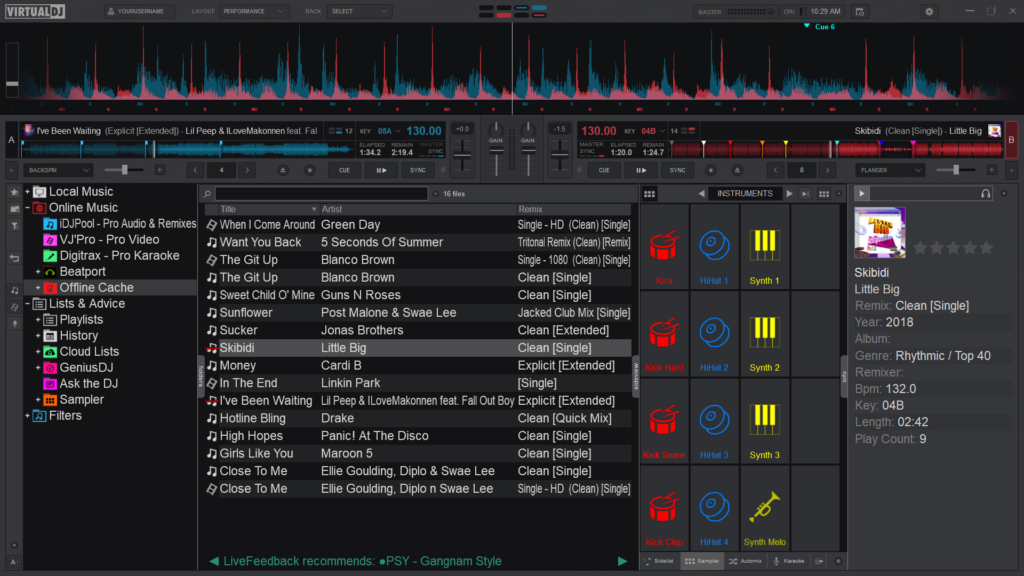

Small
